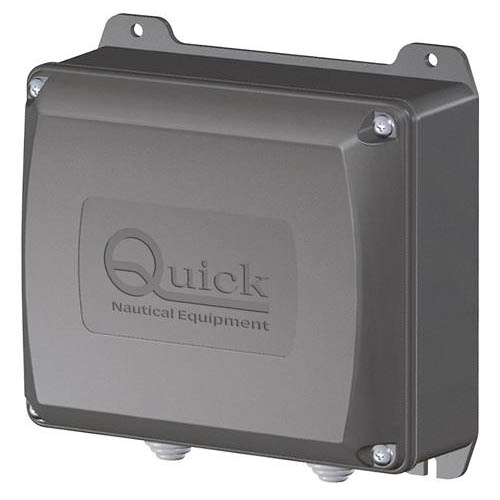

Marine Quick R902 Wireless Receiver Box

• Marine Quick R902 Wireless Receiver Box
• Quick R902 Wireless Receiver Box, 2 Relays, 913 MHz
• The Quick Wireless Receiver is designed specifically to work with our Quick handheld and pocket radio remote controls. Operating on a 913 MHz frequency, this unit has a full power range from 10.5 to 31VDC. By communication with the transmitter, you will receive indication of the system operating status, errors and problems by means of LED and seven segment display. Additional features of this unit are that it is protected against polarity inversion and low battery, up to 50 transmitters can be stored, it has a translation mode to activate more receivers installed in different spots by means of one transmitter, it has a programmable digital filter, and the possibility of being connected to an external antenna.

Specifications:

• Power Supply: 10.5-31 VDC
• Quiescent Current: 25 mA
• Absorption with 2 Relays Activated: 120 mA
• Relay Number: 2
• Relay Contact Rating: 15A
• Frequency: 913.7 Mhz
• Modulation: FSK
• Number of Transmitters that can be Stored: 50
• EMC Standard: FCC Title 47 Part 15 Subpart B Class B
• Operating Temperature: from -15° C to +70° C
• Dimensions: 5.63 x 5.58 x 2.42 in. (143 x 141.7 x 61.4mm)
• Weight: 0.66 lb (300 g)
