  • Marine Downlight - Leer LED Adjustable Downlight, Matte Chrome, 10-30VDC
  • Warm White, Slave (dimmable with Master), IP20

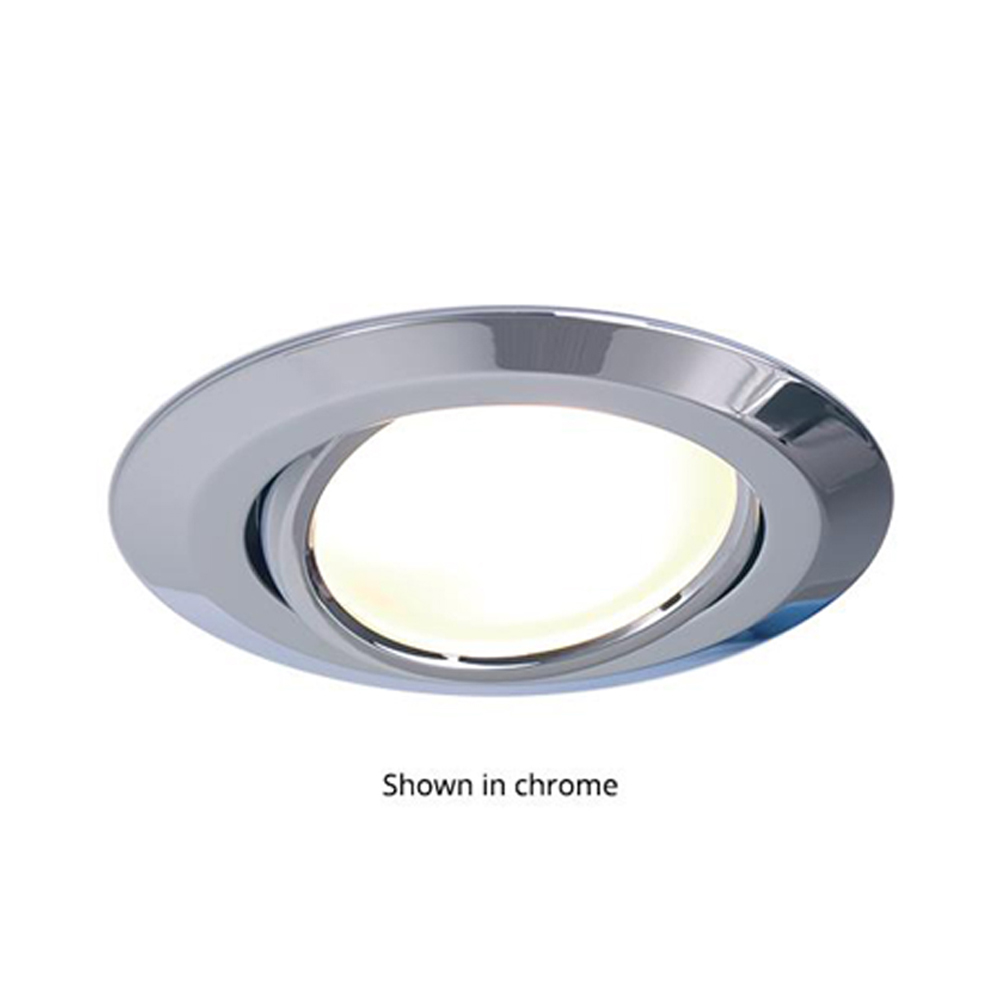

  • The Leer adjustable spot is offered in chrome, matte chrome, or gold plated brass. It may be wired to any remote on/off switch or when wired to the Leer "Master" (model ILPB22243107) it can be fully dimmed. A maximum of 15 slaves may be paired with any master unit. Control (i.e. dimming) of the Leer slaves can be done right at the "master" or via a remotely installed single throw momentary switch.

Features:

  • Bright warm white illumination
  • Inner lens pivots up to 25°
  • Wide 90° viewing angle
  • Integrated 10-30VDC constant current LED driver
  • Full dimming when paired with a master (see ILPB22243107)

Specifications:

  • Housing Finish/Material: Matte Chrome Plated Brass
  • Lens Material: Frosted acrylic
  • Trim Ring (Bezel) Dimensions: 3.46" (88mm) x 0.14" (3.5mm)
  • Cut-Out Dimensions: 2.91" (74mm)
  • Recessed Depth: 0.76" (20mm)
  • Integrated Switch: Yes (dimmer)
  • Input Voltage: 10-30VDC
  • Power Consumption: 3W
  • Driver: Integrated, current-controlled
  • Output Color: Warm white
  • Luminous Flux: 175 lm
  • Correlated Color Temperature (CCT): 3000K
  • Halogen Equivalency: 20W
  • Color Rendering Index (CRI): 85
  • Beam Angle: 90°
  • Lifetime Hours: 50000
  • Dimmer Compatibility: See Leer Master (ILPB22243107)
  • Dimmer Control Interface: N/O single throw momentary switch
  • Mounting Method: Springs
  • Install Location: Interior, ceilings
  • Ingress Protection: IP20
  • Class: Class III
  • Electrical Protections: Transients, reverse polarity
  • Certifications & Compliance: CE, ROHS
  • Manufacturer: Prebit
  • Warranty: 3 Years / 1 Year Finish
