  • Description

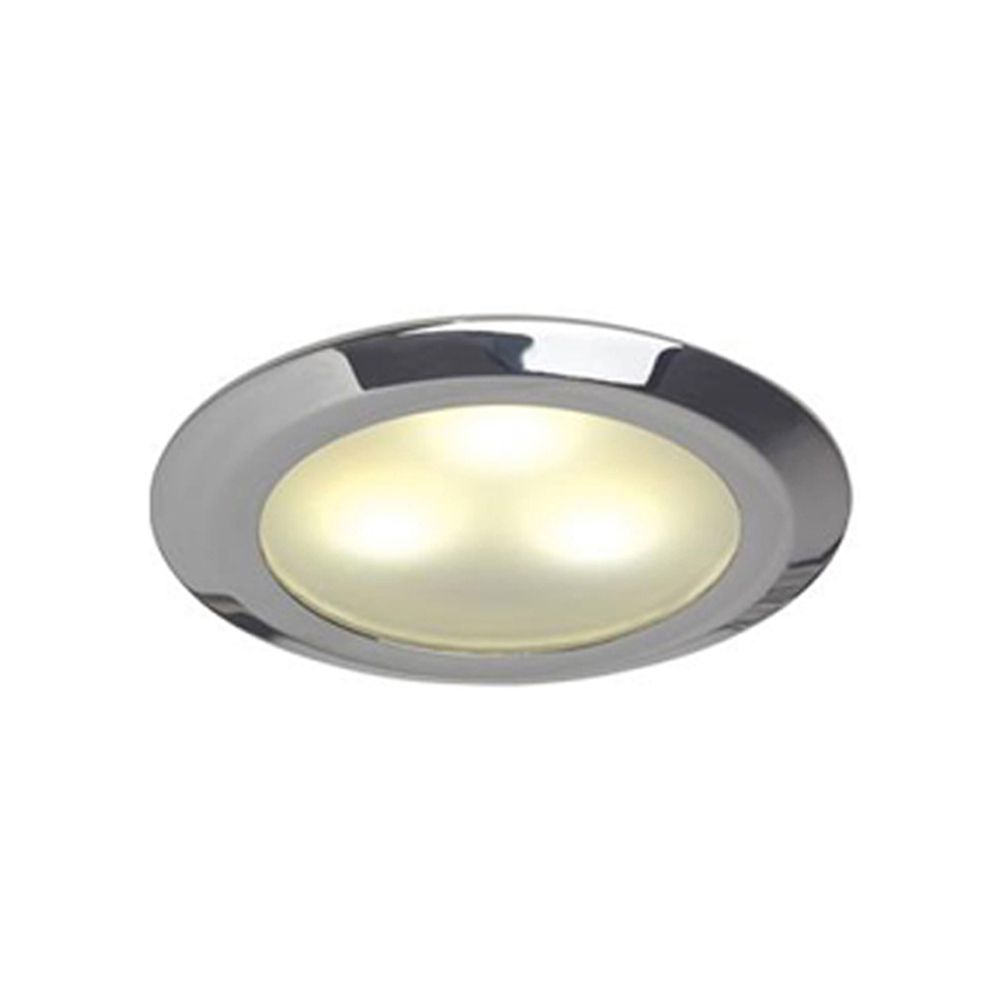

  • Marine Downlight - Leer LED Downlight, Chrome, Warm White-Blue, 10-30VDC
  • Slave (dimmable with Master), IP20
  • The Leer bi-color recessed downlight is offered in chrome, matte chrome, or gold plated brass. The housing is a mere 0.70" deep so it is a good choice for ceilings with limited depth behind the headliner. It may be wired to any remote 3-position on/off/on switch for bi-color operation or when wired to a Leer "Master", bi-color dimming can be accomplished via the switch on the master unit or from a remote momentary switch. A maximum of 15 slaves may be paired with any master unit.
  • For dimmed circuits: To switch the lights on or off, press briefly on either the master's built-in switch or a remote momentary switch. Brightness can be adjusted by holding down the switch. To reverse the dimming phase, release the switch briefly and press again within one second. A double click changes between the two colors. Lights that are switched off can always be switched on to red light with a double click. If Leer single color slaves are used in the circuit, they will completely turn off when switching to the red mode.

Features:

  • Switch between warm white & blue illumination
  • Wide 90° viewing angle
  • Integrated 10-30VDC constant current LED driver
  • Full dimming when paired with a master (see ILPB22863105)

Specifications:

  • Housing Finish/Material: Chrome Plated Brass
  • Trim Ring (Bezel) Dimensions: 2.76 inch (70mm) x 0.14 inch (3.5mm)
  • Lens Material: Frosted acrylic
  • Cut-Out Dimensions: 2.44 inch (62mm)
  • Recessed Depth: 0.70 inch (18mm)
  • Input Voltage: 10-30VDC
  • Power Consumption: 3W
  • Driver: Integrated, current-controlled
  • Output Color: Warm white/blue
  • Luminous Flux: 175 lm
  • Correlated Color Temperature (CCT): 3000K/Red
  • Halogen Equivalency: 20W
  • Color Rendering Index (CRI): 85
  • Beam Angle: 90°
  • Lifetime Hours: 50000
  • Dimmer Compatibility: See Leer Master (ILPB22963105)
  • Dimmer Control Interface: N/O single throw momentary switch
  • Mounting Method: Springs
  • Install Location: Interior, ceilings
  • Ingress Protection: IP20
  • Class: Class III
  • Electrical Protections: Transients, reverse polarity
  • Certifications & Compliance: CE, ROHS
  • Manufacturer: Prebit
  • Warranty: 3 Years / 1 Year Finish
