Marine Downlight - Leer LED Downlight, Warm White-Red, 10-30VDC

• Marine Downlight - Leer LED Downlight, Chrome, Warm White-Red, 10-30VDC
• Slave (dimmable with Master), IP20

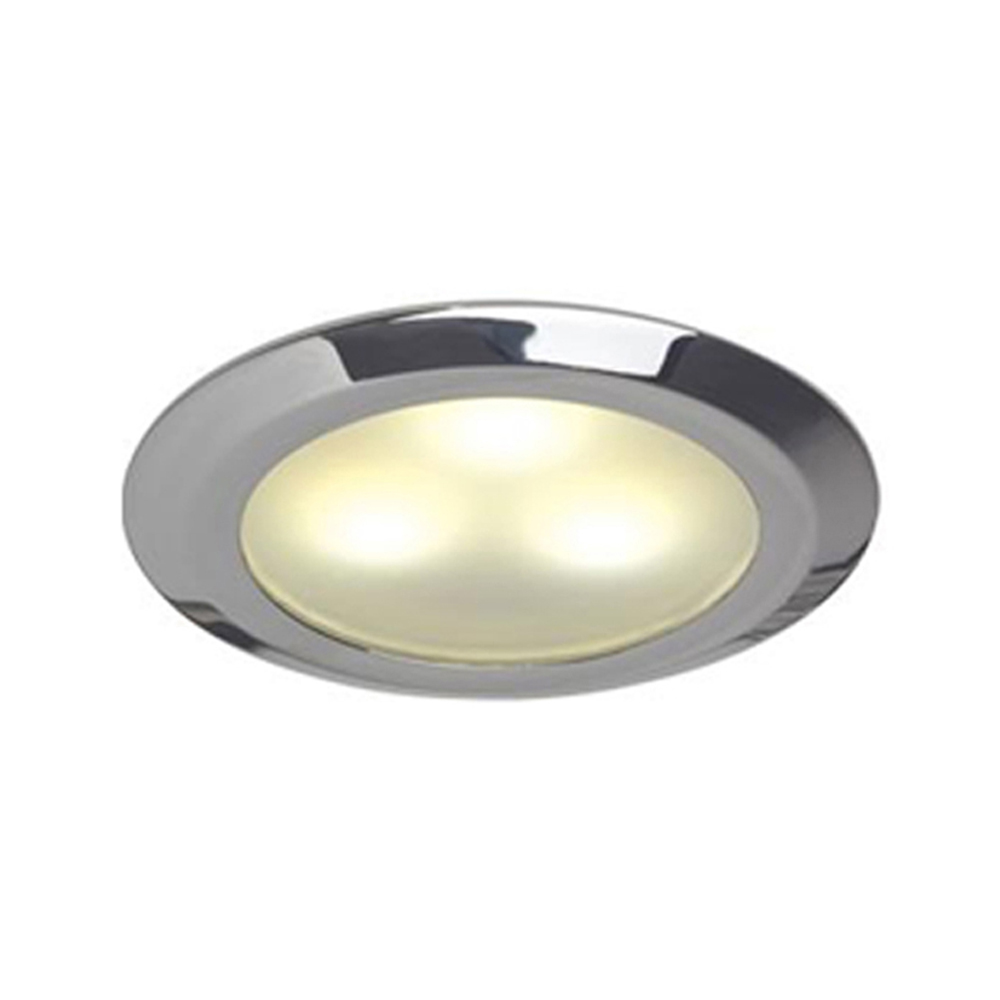

• The Leer bi-color recessed downlight is offered in chrome, matte chrome, or gold plated brass. The housing is a mere 0.70" deep so it is a good choice for ceilings with limited depth behind the headliner. It may be wired to any remote 3-position on/off/on switch for bi-color operation or when wired to a Leer "Master", bi-color dimming can be accomplished via the switch on the master unit or from a remote momentary switch. A maximum of 15 slaves may be paired with any master unit.
• For dimmed circuits: To switch the lights on or off, press briefly on either the master's built-in switch or a remote momentary switch. Brightness can be adjusted by holding down the switch. To reverse the dimming phase, release the switch briefly and press again within one second. A double click changes between the two colors. Lights that are switched off can always be switched on to red light with a double click. If Leer single color slaves are used in the circuit, they will completely turn off when switching to the red mode.

Features:

• Bright warm white illumination
• Wide 90° viewing angle
• Integrated 10-30VDC constant current LED driver
• Full dimming when paired with a master (see ILPB22963105)

Specifications:

• Housing Finish/Material: Chrome Plated Brass
• Trim Ring (Bezel) Dimensions: 2.76 inch (70mm) x 0.14 inch (3.5mm)
• Lens Material: Frosted acrylic
• Cut-Out Dimensions: 2.44 inch (62mm)
• Recessed Depth: 0.70 inch (18mm)
• Input Voltage: 10-30VDC
• Power Consumption: 3W
• Driver: Integrated, current-controlled
• Output Color: Warm white/red
• Luminous Flux: 175 lm
• Correlated Color Temperature (CCT): 3000K/Red
• Halogen Equivalency: 20W
• Color Rendering Index (CRI): 85
• Beam Angle: 90°
• Lifetime Hours: 50000
• Dimmer Compatibility: See Leer Master (ILPB22963105)
• Dimmer Control Interface: N/O single throw momentary switch
• Mounting Method: Springs
• Install Location: Interior, ceilings
• Ingress Protection: IP20
• Class: Class III
• Electrical Protections: Transients, reverse polarity
• Certifications & Compliance: CE, ROHS
• Manufacturer: Prebit
• Warranty: 3 Years / 1 Year Finish
