You bought something for the boat, now make her smile with Nautical Jewelry!

  • Description

24V (10W), 5NM, IP66, 360°

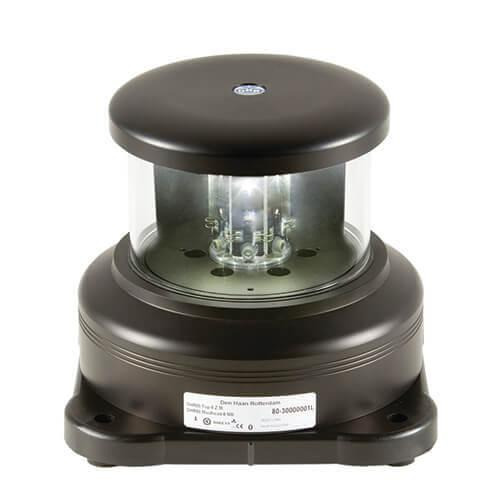

With the all new DHR80 LED, vessels with a length of over 50 meters (164') can also be fitted with DHR LED Technology.

Its modern, innovative and rugged design makes the DHR80 LED yet another standard in navigation lighting.

Leading brand LEDs and highest quality components assure the most robust and durable navigation light on the market.

Zero noise interference, excellent thermal management and 100.000 hour lifetime results in an exceptionally reliable product with minimal maintenance costs.

The DHR80 LED also features a back-up LED/driver module built right in to the fixture and is completely user-serviceable with spare parts and repair kits readily available.

Meets UL1104 Standard.

DHR lights are CE-EMC tested and certified and will not interfere with VHF radios

Features

  • For vessels over 50meters in length
  • Visibility from 3 to 6NM (depending on application)
  • UV resistant matteblack, anodized aluminum housing
  • Galvanically isolatedback-up LED module built in to fixture
  • POM base to preventgalvanic corrosion
  • Borosilicate glasslens
  • Epoxy potted LED driverfor maximum protection
  • User serviceable (partsand repair kit available)

Specifications

  • Certifications & Compliance: IMO, Colreg 72, MED 96/98/EC, EN14744, UL1104 & USCG
  • Output Color: White
  • Lifetime Hours: 50,000 hrs
  • Class: I, (grounded)/III
  • Input Voltage: 19-32VAC
  • Dimensions: See dimensional drawing
  • Warranty: 3 Years
  • Power Consumption: 10W
  • Lens Material: Boroscilicate well glass
  • Ingress Protection: IP66
  • Mounting Method: Base-mount
  • Drive: Integrate (main & spare)
  • Install Location: All-Round/Maneuvering
  • Electrical Protections: Transient Voltage, ESD Protection, Current Regulation

Click here for Dimensional Drawing
