F-22 HO Linear LED, Touchsensor Switch, Cool White/Blue-IL7367

  • Item No.: IL7367
  • Manufacturer: Imtra Marine Products
Regular price: $171.35
Sale price:$149.00
Qty.:
Contact us Now
  • Description

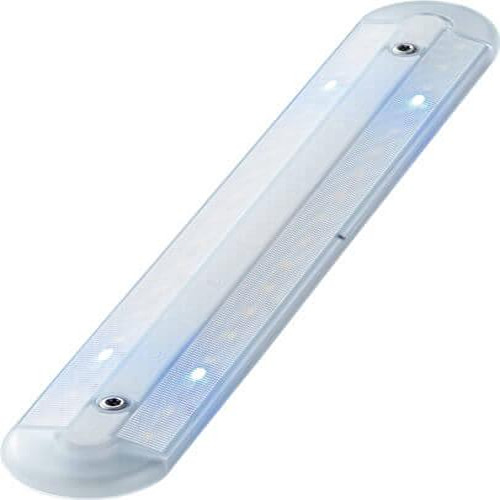

  • F-22 Linear LED, Touchsensor Switch, Cool White/Blue
  • F-22 Linear LED, Touchsensor Switch, Cool White/Blue, Clear Housing, High Output, 10-30VDC, 8W
  • The F-22 HO is an extremely low profile touch activated linear LED fixture featuring dual color operation. Installation could not be more simple, as the F-22 is completely surface-mounted, only requiring two screws for fastening. Turning the fixture on and off and/or switching from cool white to blue LED is achieved via photo sensors which respond to finger touch.

Features & Benefits

  • Extreme low-profile surface-mount water-proof design
  • Illuminated touch sensor switch
  • Dual LED color (cool white/blue) operation
  • Non-glare semi-transparent PCB lens

Specifications:

  • Multi-voltage: 10-30VDC
  • Maintenance free: No bulbs to change
  • Low power consumption
  • Finish: Translucent
  • Housing Material: UV Stabilized Polycarbonate
  • Lens Material: UV Stabilized Polycarbonate
  • Dimensions (L x W x H): 10.63 x 1.57 x 0.31 in. (270 x 40 x 8 mm)
  • Voltage Input Range: 10-30VDC
  • Power Consumption (Watts): 8W
  • Beam Angle (FWHM): 117°
  • Luminous Flux: 275 lms
  • Correlated Color Temperature (CCT): 5700K, White
  • Color Rendering Index (CRI): 75
  • Lifetime Hours (L70): 35,000 hrs
  • Electrical Protections: Reverse Polarity, Transients, EMI
  • Integral Switch: Yes (Touch Sensor)
  • Mounting Method: Surface-mount (with screws)
  • Ingress Protection: IP67
  • Manufacturer: Frensch
  • Warranty: 3 Years

ATTENTION CALIFORNIA RESIDENTS

www.P65Warnings.ca.govWARNING: Cancer and Reproductive Harm

Click here for Dimensional Drawing
