G166 Bi-color, Warm White Red, Polished Ss, 10-40vdc, Surface-mount With Switch - Ilim56301

  • Item No.: ILIM56301
  • Manufacturer: Imtra Marine Products
Regular price: $320.85
Sale price:$279.00
Qty.:
Contact us Now
  • Description

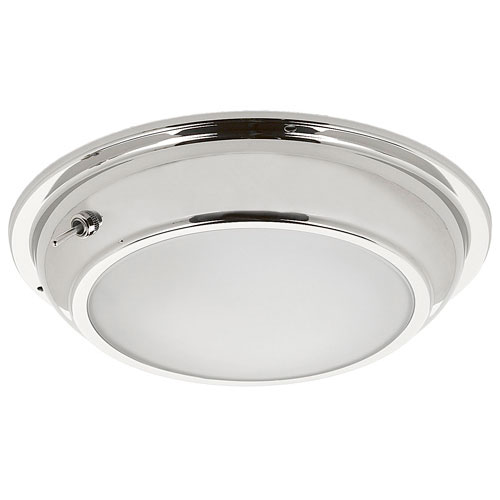

G166 Bi-color, Warm White & Red, Polished Ss, 10-40vdc, Surface-mount With Switch - Ilim56301

Features:

  • Low profile round stainless steel bezel design
  • Convenient 2-wire power & dimming (3 with bi-color dimming)
  • Bi-color dimming models are controlled with a single momentary switch
  • Integrated current controlled drive circuitry
  • All stainless steel construction
  • Integrated drive electronics and on/off switch
  • Solid glass frosted lens
  • Double gaskets for splash-proof protection
  • PWM dimming interface
  • Easy surface-mount installation with screws
  • No radiated heat

Specifications

  • Housing Finish/Material: Stainless Steel
  • Certifications & Compliance: CE-EMC, ROHS
  • Integrated Switch: Yes
  • Output Color: Warm/Red
  • Lifetime Hours: 50,000 hrs
  • Class: Class III
  • Dimmer Compatibility: ILIM80130, ILIM80140
  • Dimmer Control Interface: Momentary Push-Button
  • Trim Ring (Bezel) Dimensions: 6.53" (166mm)
  • Trim Ring (Bezel) Finish/Material: Polished stainless steel
  • Halogen Equivalency: 25W
  • Input Voltage: 10-30VDC
  • Warranty: 5 Years / 1 Year Finish
  • Dimensions: See dimensional drawing
  • Power Consumption: 4.7W
  • Lens Material: Frosted glass
  • Ingress Protection: IP65 (applies only to frontal water exposure, i.e. Exposed surface)
  • Mounting Method: Surface-mount
  • Dimming Range: 5-100%
  • Luminous Flux: 183 lms
  • Driver: Integrated
  • Install Location: Ceilings (interior)
  • Electrical Protections: Reverse Polarity, Transient & Spike Protection
  • Correlated Color Temperature (CCT): 2800K (White LED)
  • Color Rendering Index (CRI): 85
  • Approximate Ship Weight (lbs): 1
