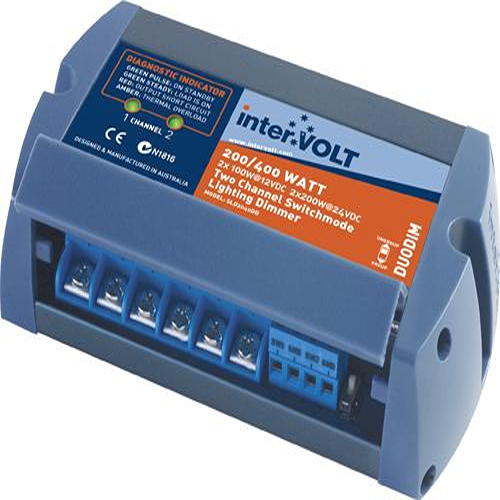

Intervolt DuoDim 2-Channel Switchmode Dimmer-ILSLD2040DD

Intervolt DuoDim 2-Channel Switchmode Dimmer, 9-33VDC, 400W Max,

for dimming two lighting circuits from one single device

Intervolt's latest digital DC switchmode dimmer for boats and RVs features two separate channels in one unit, allowing complete control of two separate lighting circuits all from one compact device. The DuoDim is suitable for dimming any filament lamp including incandescent, halogen and xenon. It will also dim basic linear regulated LED products such as LED rope light. Via mode selector switch, you may also combine both channels for use with a single switch, therefore utilizing the power of both channels into one!

Features & Benefits:

• Purpose built compact housing - marine grade, non-ferrous
• Fully insulated heavy duty custom design terminals
• Mode selector switch for dual channel or combined channel operation
• Dual diagnostic LEDs to monitor both channels
• Built-in memory recalls last brightness setting
• Soft Start feature limits current to protect lamps from premature failure
• Failsafe protection ensures 50% light output should electronics overheat

Specifications:

• Dimensions: 5.32 x 3.15 x 1.58 in. (135 x 80 x 40mm)
• Input Voltage Range: 9-33VDC
• Load Rating (per channel): 12V/100W, 24V/200W
• Load Rating (group mode): 12V/200W, 24V/400W
• Dimming Voltage Range: 10-98% of output voltage
• Standby Current Draw: <10mA
• Complete Off: Yes
• Number of Switches: Unlimited (not supplied with dimmer)
• Dimmer Type: Remote/Digital/Push-Button
• Control Type: Momentary Push-Button
• Operating Temperature: -25°C to +45°C
• Housing: Marine grade aluminum dye anodized with ABS moulded end caps
