  • Description

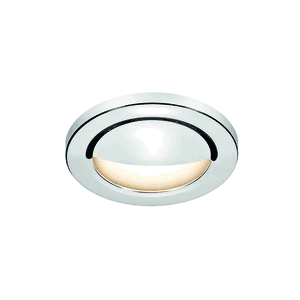

  • BCM courtesy light fixtures are specifically designed for marine step and indirect lighting applications.
  • The courtesy lights in this range are all offered in a 3000K warm white LED color and several finishes within each family.
  • They are precision engineered to take advantage of the latest in LED technology.
  • They feature light weight construction, minimal power consumption, superior reliability and less radiated heat than traditional light sources.
  • When installed properly, these products will provide years of dependable performance.

Specifications

  • Certifications & Compliance: CE, EMC, ROHS, REACH
  • Output Color: Warm White
  • Lifetime Hours: 50,000 hrs
  • Class: Class III
  • Dimmer Compatibility: DMS or Imtra 2-Wire
  • Cut-out Dimensions: 44mm (1.73in)
  • Trim Ring (Bezel) Dimensions: 60mm (2.36in) dia
  • Input Voltage: 8-32 VDC
  • Finish: White
  • Recessed Depth: 0.39" (10mm)
  • Lens Material: Frosted glass
  • Max. Wattage: 1.5W
  • Mounting Method: Wire springs
  • Luminous Flux: 60 lms
  • Electrical Protections: Reverse Polarity, Transient & Spike Protection
  • Correlated Color Temperature (CCT): 3000K
  • Color Rendering Index (CRI): >80
  • Approximate Ship Weight (lbs): 1
