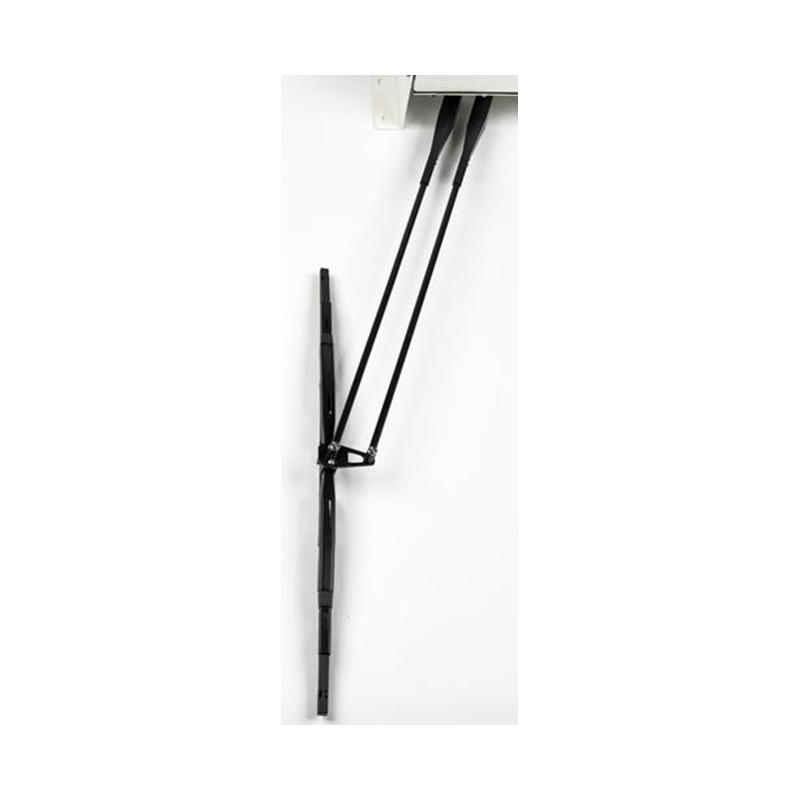

Pantograph Arm, Adjustable, Reverse Head, 14.8 to 20.7 Inch
Click image to enlarge

Pantograph Arm, Adjustable, Reverse Head, 14.8 to 20.7 Inch

  • Item No.: EX2133-R
  • Manufacturer: Imtra Marine Products
Regular price: $442.75
Sale price:$385.00
Qty.:
Other Variations:
Type 1 Pantograph Arm, 26.6 to 31.1" (675-790mm)-EX2139ASType 1 Pantograph Arm, 26.6 to 31.1" (675-790mm)-EX2139AS | $410.00Type 1 Pantograph Arm - Adjustable From 10.6 To 17.7Type 1 Pantograph Arm - Adjustable From 10.6 To 17.7 | $365.00Type 1 Pantograph Arm - Adjustable From 17.7 To 23.6Type 1 Pantograph Arm - Adjustable From 17.7 To 23.6 | $360.00Type 1 Pantograph Arm 26.6-31.1 Inch (675-790mm) - EX2139-RType 1 Pantograph Arm 26.6-31.1 Inch (675-790mm) - EX2139-R | $390.00Type 1 Pantograph Arm Adjustable 14.8 - 20.7 Inch w/ Adj. Dual SpringsType 1 Pantograph Arm Adjustable 14.8 - 20.7 Inch w/ Adj. Dual Springs | $373.00Type 1 Pantograph Arm, Adjustable 20.7- 25.6 Inch w/ Adj. Dual SpringsType 1 Pantograph Arm, Adjustable 20.7- 25.6 Inch w/ Adj. Dual Springs | $383.00Type 1 Pantograph Arm 26.6-31.1" (675-790mm) W/ 2 Adjustable Spring Gallery - EX2139AS2Type 1 Pantograph Arm 26.6-31.1" (675-790mm) W/ 2 Adjustable Spring Gallery - EX2139AS2 | $393.00Type 1 Pendulum Air 450-600mm AdjustableType 1 Pendulum Air 450-600mm Adjustable | $340.00Type 1 Pantograph Arm 20.7-25.6" (525-650mm) Adjustable Reverse Head For Xbd Units - Ex2136.rType 1 Pantograph Arm 20.7-25.6" (525-650mm) Adjustable Reverse Head For Xbd Units - Ex2136.r | $365.00Type 1 Pendulum Arm (300-450Mm)Type 1 Pendulum Arm (300-450Mm) | $300.00
Contact us Now
  • Description

Pantograph Arm, Adjustable, Reverse Head, 14.8 to 20.7".
This wiper arm is compatible with the 223XBD External Motor only.


Features

  • All 316 stainless steel components with brass attachment heads
  • All arms include adjustable spring mechanism in drive gallery
  • Arms can be folded back during boat cleaning
  • Styled gallery covers for clean appearance
  • Low-glare black polyester epoxy coating over sandblasted stainless steel surface for durable finish
  • Accept Type 1 blades to 311/2" (800mm)
  • Two different optional washing jets available
  • Optional tubing retainer strip holds tubing to the arm
  • Optional double spring assembly


Specification

  • For Motors: 223XBD - External ONLY
  • Minimum Arm Length: 14.8" (375mm)
  • Maximum Arm Length: 20.7" (525mm)
  • Washing Jet Options: EX2184 or EX2110
  • Accepts Blades: EX2171-EX2179, EX2195, EX2196
  • Accepts Heavy Duty Blades: EX216120-EX216124
  • Tubing Retainer Strip: EX2133.03
