You bought something for the boat, now make her smile with Nautical Jewelry!

  • Description

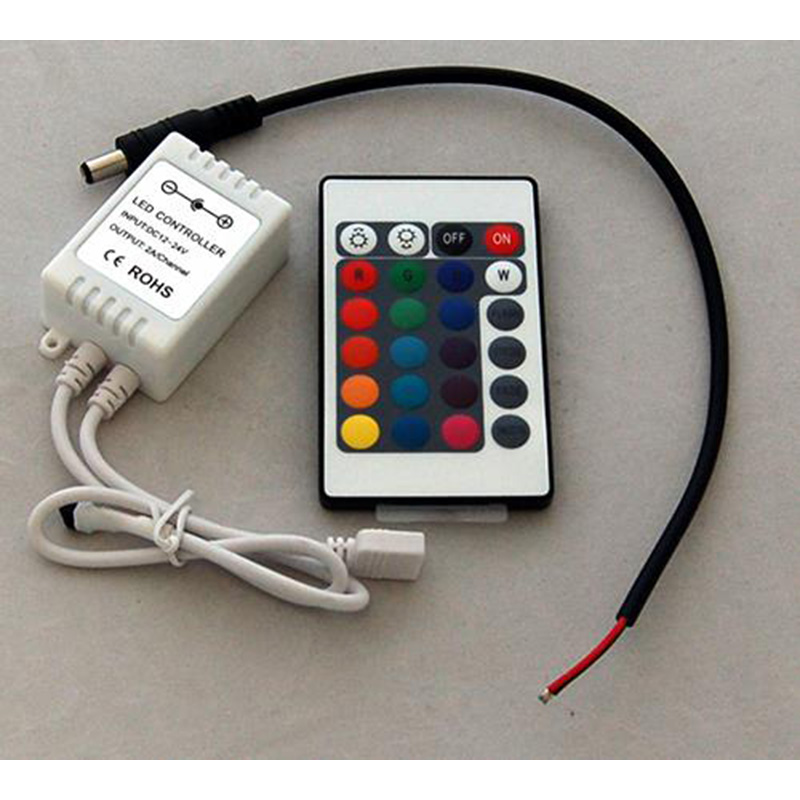

  • This RGB Control Kit provides everything you need to operate your RGB LED Strip Tape
  • It includes a 12/24V input Controller and IR hand-held 24 button Remote Control
  • The kit also includes a DC male connector for quick and easy connection to DC source
  • If DC supply is not regulated (i.e
  • from voltage-regulated power supply) then it is highly recommended to add a DC voltage stabilizer or conditioner to provide stable 12V or 24VDC power
  • Imtra has a range of stabilizers and conditioners which can be viewed on our website by going to the Lighting Accessories tab in the Lighting pull down menu.

Features

  • Includes RGB Controller, RGB-IR Remote, DC Male Connector
  • Can control two sections of RGB Strip Tape RGB with optional 4-Pin Y-Connector
  • Connecting Mode: Anode\Output: Three CMOS drain-open output
  • Controls static colors, brighness, flash, strobe, fade, jump

Specifications

  • Housing Finish/material: White PCB
  • Dimensions: 1.96" (50mm) x 1.37" (35mm) x 0.87" (22mm)
  • Input Voltage: 12/24VDC
  • Max Operating Temperature: 140°F (60°C)
  • Load Rating: 2A per channel
  • Install Location: Dry Location
  • Ingress Protection: IP20
  • Certifications & Compliance: CE, ROHS
  • Warranty: 1 Year
