  • Description

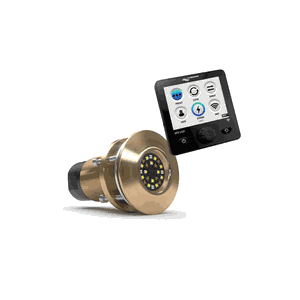

EOS Color-Change


  • Includes 1 meter of DMX cable assembly for quick connect to an existing TIX403 EOS Color Changing System
  • Smallest Thru-Hull EOS (color changing) fixture
  • Flush-fit, suitable for transom, hull side, or bottom mounting
  • Recommended for boats up to 30 - 60ft
  • Enjoy 6 x preset colors, color cycle, scenes, sweep, mix, brightness control, & strobe
  • The STV Controller provides exclusive"Sound-To-Light" integration with on-board audio system
  • Advanced light engine designed with ATRB (Active Thermal Roll-Back)
  • 9,000 lumens (4,000 fixture lumens)
  • The perfect"Swimming Pool" effect - full 110dg beam angle
  • Battery Low Voltage warning system


  • Housing Finish/Material: Marine grade aluminum bronze
  • Trim Ring (Bezel) Finish/Material: High conductivity marine grade aluminum-bronze
  • Lens Material: Toughened BK7 Borosilicate
  • Trim Ring (Bezel) Dimensions: 3.46" (88mm) x 0.31" (8mm) profile height
  • Cut-Out Dimensions: Requires 2.25" (57mm) hole size
  • Recessed Depth: 5.35" (136mm)
  • Dimensions: 2.56" (65mm) x 4" (100mm)
  • Max Wattage: 36W
  • Input Voltage: 10.5-31VDC
  • Power Consumption: 3.6 Amps @ 12V, 1.8 Amps @ 24V
  • Max Operating Temperature: Use ambient temps up to 125°F (50°C)
  • Driver: Integrated, Interchangable Driver
  • Output Color: RGBW
  • Correlated Color Temperature (CCT): FUll spectrum color changing (RGBW)
  • Luminous Flux: 9,000 lm (4,000 fixture lm)
  • Beam Angle: 110°
  • Lifetime Hours: 50,000 hrs
  • Mounting Method: Thru-hull, bonding connection required
  • Install Location: Transom, Bottom, Hull-Side
  • Ingress Protection: IP68
  • Class: III
  • Electrical Protections: ATRB (automatic thermal rollback), surge, APR (auto power control), soft start, reverse polarity, in-rush current, power line noise suppression
  • Certifications & Compliance: CE, ROHS, Rina, DNV-GL, Lloyd's Type Approval, ABS
  • Manufacturer: Lumishore
  • Warranty: 3 Years
