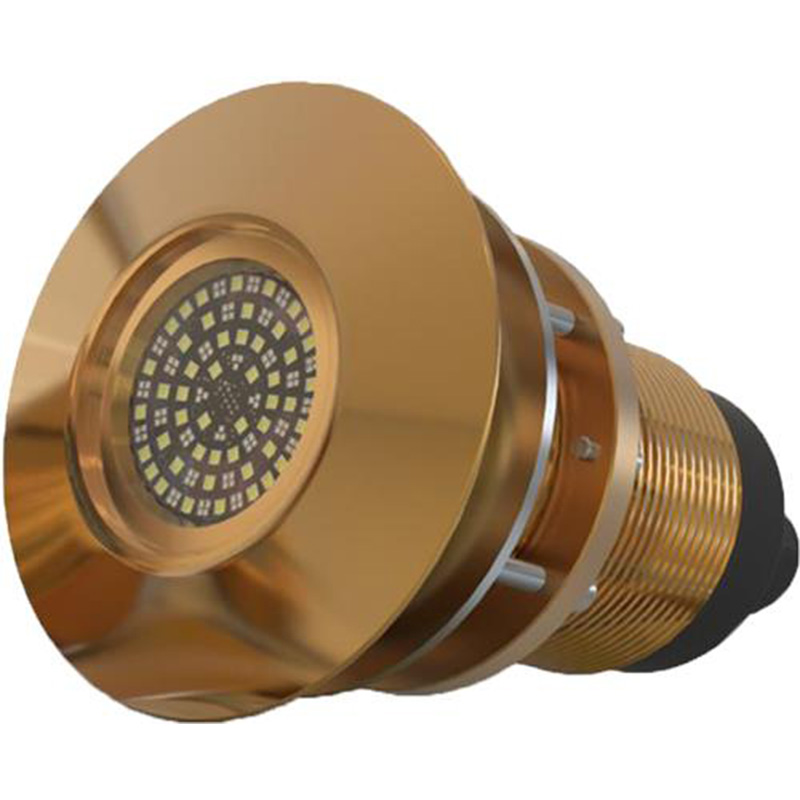

Lumishore TIX1603 SUPRA Blue White Under Water Light - LM600343

Internal Driver, 24VDC Only
The Lumishore TIX1603 is the biggest and brightest of the Supra Dual Color"Interchangeable" Thru-Hull Underwater Lights. The TIX models are distinguished from the THX models by their super flat bezel profiles and larger shaft diameter which houses the integral driver. These underwater light fixtures are designed for those owners who prefer the integrity of a thru-hull installation with the peace of mind of a removable LED array that can be serviced from inside the boat.

• Recommended for boats 25-330' (7-100m)
• Flush-fit, suitable for transom, hull side, or bottom mounting
• Interchangeable array with internal driver
• Full power Dual-color without sacrificing brightness
• Use Lumi-Switch for color fade, change speed, brightness control, and strobe
• 38,250 lumens (17,000 fixture lumens)
• Wide 110° beam angle for the ultimate flood effect
• Advanced light engine designed with ATRB (Active Thermal Roll-Back)
• 3 year warranty

• Tring Ring (Bezel) Finish/Material: Marine grade aluminum bronze
• Housing/Finish Material: Marine grade aluminum bronze
• Lens Material: BK7 Borosilicate
• Trim Ring (Bezel) Dimensions: 5.51" (140mm) x 0.43" (11mm) profile height
• Cut-Out Dimensions: 3.625" (92mm)
• Recessed Depth: 7.24" (184mm)
• Dimensions: 5.51" (140mm) dia x 7.24" (184mm) shaft length w/cable grommet
• Input Voltage: 20-31VDC
• Power Consumption: 6.5A (24V)
• Driver: Multi Channel Interchangeable Driver
• Output Color: Cool White/Blue
• Luminous Flux: 38,250 lms (17,000 fixture lms)
• Beam Angle: 110°
• Max Operating Temperature: Use in ambient temps up to 125dg F (50dgC)
• Lifetime Hours: 50,000+ hrs
• Mounting Method: Thru-hull, bonding connection required
• Install Location: Transom, hull sides, bottom
• Ingress Protection: IP68
• Class: III
• Electrical Protections: ATRB (automatic thermal rollback), surge, APR (auto power control), soft start, reverse polarity, in-rush current, power line noise suppression
• Certifications & Compliance: CE, ROHS
• Manufacturer: Lumishore
• Warranty: 3 Years
