DC Speed Controller for SEP Thruster - SMPPC820

Click image to enlarge

DC Speed Controller for SEP Thruster - SMPPC820

Item No.: SMPPC820
Manufacturer: Imtra Marine Products

Regular price: $2,875.00

Sale price:$2,250.00

Other Variations:

Zinc Anode for EX Thruster | $52.20Zinc Anode and Screw for Older 10/15/20HP - SM101180 | $29.70Aluminum Alloy Anode, 215mm to 300mm Tunnel Thrusters - SM201180A | $29.70Aluminum Alloy Anode, 386mm Tunnel Thrusters - SM501180A | $99.00Isolation Kit, For thrusters in 386mmTunnel Size - SM501320 | $173.70Zinc Anode Kit for ES60 Thrusters - SM55-00081 | $15.75Zinc Anode for Older 7HP Models - SM71180 | $14.18Aluminum Alloy Anode, 185mm Tunnel Thrusters - SM71190A | $13.05DC Speed Controller for SEP Thruster - SMPPC520 | $2,151.00DC Speed Controller for SEP300 Thruster - SMPPC840 | $2,547.00

Pre-Sales questionnaire before buying a bow or stern thruster

Qty.:

Need Help!!

Description

Up to 1000A

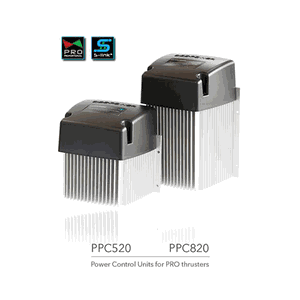

The PPC800 Power Control Unit is now discontinued and replaced with two new models, the PPC520 and PPC820.

Features

Plug and play S-link™ control cable wiring
Easy to access, solid main cable terminals
Easy to place as it can be located anywhere between the batteries and the thruster, also in areas requiring ignition protected parts
Reliable solid state switching
Thermal and over current protection
Active cooling for continuous usage

Specification

Dimensions (W x H x D): 7.5 x 12 x 5.6in (190 x 304 x143mm)
Voltage: 12V/24V
Output Voltage: 20 - 100%
Ouput Current: Maximum 500A
Frequency PWM: 15 KHz
Regulation: PVM, S-Link controlled
Protection: Thermal and overcurrent protected
