  • Description

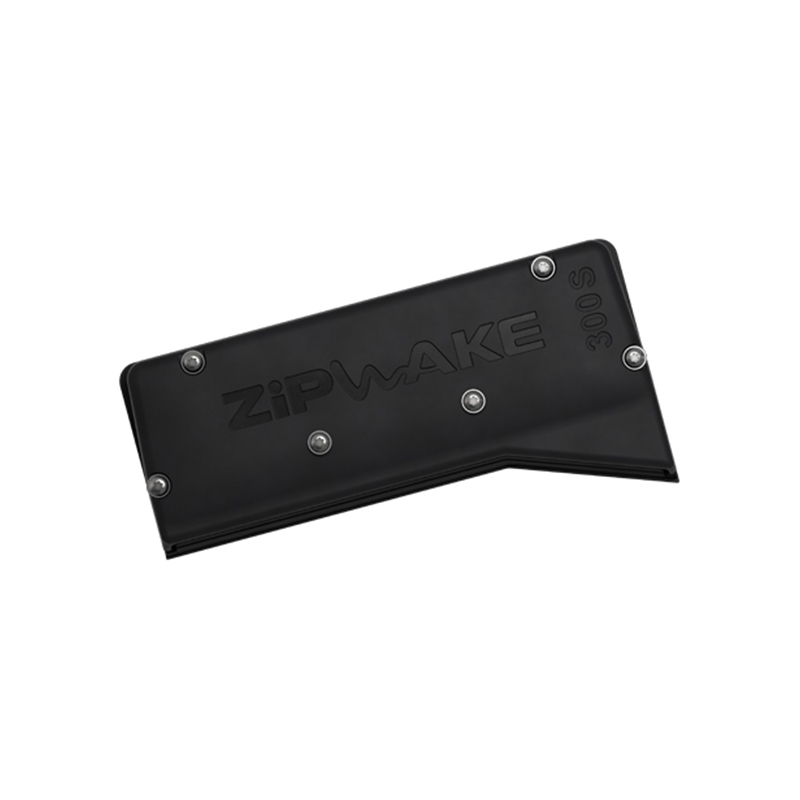

  • Chine interceptors provide a unique means of maximizing pitch and roll motion control by utilizing the furthest outboard surfaces of the hull bottom for lift generation.
  • As a rule, the lift effect of a chine interceptor matches the lift of a straight interceptor one size larger mounted inboard of the chine, making them the go-to choice when selecting interceptors.

Features

  • Zipwake is a fully automatic and active trim control system
  • Dynamically eliminates uncomfortable and dangerous boat pitch and roll
  • Automatically minimizes wave resistance and saves fuel
  • Built-in quality, simplicity and easy expansion, yet affordable
  • 5-10 times faster than conventional trim tabs
  • Built-in GPS, 3D-Gyro and 3D- Accelerometer

Specifications

  • Certifications & Compliance: CE, FCC
  • Max. Boat Speed: 60 knots
  • Blade Stroke: 1.2" (30mm)
  • Blade Rate: 0.8 in/s (20 mm/s)
  • Thru-Hull Cable Fitting: Concealed or above waterline
  • Servo Actuator: SU-S
  • Cable Material: PUR
  • Connector: M12 5-pin circular
  • Connector Diameter: 0.57" (14.5 mm)
  • Cable Length: 10' (3 m), extendable up to 20' (6 m)
  • Voltage: 12-32VDC
  • Power Consumption: 25W max
  • Ingress Protection: IP68, 16' (5 m)
  • Operating Temperature: +32° to +104°F (0° to +40°C)
  • Storage Temperature: -40° to +194°F (-40° to +90°C)
  • Approximate Ship Weight (lbs): 8
