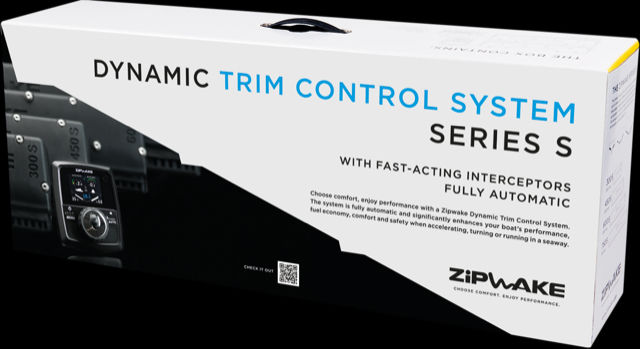

Zipwake Dynamic Trim Control Kit Box 450 S Chine - ZW2011733

• Chine interceptors provide a unique means of maximizing pitch and roll motion control by utilizing the furthest outboard surfaces of the hull bottom for lift generation.
• As a rule, the lift effect of a chine interceptors matches the lift of a straight interceptor one size larger mounted inboard of the chine, making them the go-to choice when selecting interceptors.A Kit Box includes all parts needed to install a Dynamic Trim Control System with one pair of fast-acting straight interceptors (2x interceptors with 3m cable and cable covers, 1 distribution unit with 4m power cable, 1 control panel with 7m standard cable, and 1 extension cable).
• Any base installation can be expanded with up to two extra pairs of Series S interceptors, thus allowing a total of six interceptors without any need for additional connectors or power supply..

Features

• Zipwake is a fully automatic and active trim control system
• Dynamically eliminates uncomfortable and dangerous boat pitch and roll
• Automatically minimizes wave resistance and saves fuel
• Built-in quality, simplicity and easy expansion, yet affordable
• 5-10 times faster than conventional trim tabs
• Built-in GPS, 3D-Gyro and 3D- Accelerometer

Specifications

• Certifications & Compliance: CE, FCC
• Max. Boat Speed: 60 knots
• Blade Stroke: 1.2" (30mm)
• Blade Rate: 0.8 in/s (20 mm/s)
• Thru-Hull Cable Fitting: Concealed or above waterline
• Servo Actuator: SU-S
• Cable Material: PUR
• Connector: M12 5-pin circular
• Connector Diameter: 0.57" (14.5 mm)
• Cable Length: 10' (3 m), extendable up to 20' (6 m)
• Voltage: 12-32VDC
• Power Consumption: 25W max
• Ingress Protection: IP68, 16' (5 m)
• Operating Temperature: +32° to +104°F (0° to +40°C)
• Storage Temperature: -40° to +194°F (-40° to +90°C)
• Approximate Ship Weight (lbs): 19
