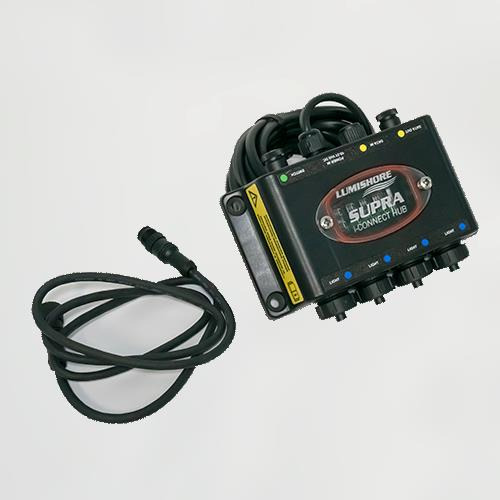

I-connect Hub: For Thx/tix Supra 403, 803, 1603 Models
Click image to enlarge

I-connect Hub: For Thx/tix Supra 403, 803, 1603 Models

  • Item No.: LM600330
  • Manufacturer: Imtra Marine Products
Regular price: $290.95
Sale price:$239.99
Qty.:
Other Variations:
Lumi-Switch Controls EOS Surface-Mount SMX92/152 - LumishoreLumi-Switch Controls EOS Surface-Mount SMX92/152 - Lumishore | $60.00Lumishore HD-SDI to HDMI Converter for LumicamLumishore HD-SDI to HDMI Converter for Lumicam | $549.00Lumishore TIX402 Lumi-Hub Junction BoxLumishore TIX402 Lumi-Hub Junction Box | $201.00Lumishore SUPRA Series i-Connect HubLumishore SUPRA Series i-Connect Hub | $229.99Lumishore SUPRA Series i-Connect SwitchLumishore SUPRA Series i-Connect Switch | $118.99Lumishore EOS Series i-Connect HubLumishore EOS Series i-Connect Hub | $154.99Lumi-link: Command Center Eos (control Your Lights From Mfd Or Display)Lumi-link: Command Center Eos (control Your Lights From Mfd Or Display) | $1,079.99Smx Supra I-connect Installation/upgrade Kit Hub & Switch Smx53 OnlySmx Supra I-connect Installation/upgrade Kit Hub & Switch Smx53 Only | $249.99Supra Lumi-link Bridge Module For Garmin Onehelm (use With Supra I-connect Hub)Supra Lumi-link Bridge Module For Garmin Onehelm (use With Supra I-connect Hub) | $539.99Command Center Field Rj45 Kit - Lm390235Command Center Field Rj45 Kit - Lm390235 | $20.00
Contact us Now
  • Description
  • I-connect Hub: For Thx/tix Supra 403, 803, 1603 Models
  • Specially designed junction box (hub) for THX/TIX403, 803, & 1603 SUPRA Series underwater lights. Designed for ease of installation, including plug-&-play connections. Compatible with SUPRA i-Connect Hub Switch or as interface between Lumi-Link MFD (multi-function display) Bridge and compatible MFD (e.g. Garmin OneHelm™. Each Hub supports up to 4 x THX/TIX SUPRA fixtures. A maximum of four i-Connect SUPRA Hubs may be linked together allowing expansion to up to 16 lights.
  • Provides simple plug-&-play installation
  • Compatible with SUPRA i-Connect Hub Switch
  • Interface between Lumi-Link Bridge & MFD (multi-function display)
  • Built in switching power relay
  • Replaceable fuses
  • Built in noise filter

  • Housing Finish/Material Black Thermoplastic
    Certifications & Compliance CE
    Output Color Full spectrum color-changing (RGBW)
    Lifetime Hours 50,000 hrs
    Class Class III
    Cut-out Dimensions 3.625" (92mm)
    Trim Ring (Bezel) Dimensions 5.50" (140mm) dia x 0.43" (11mm) profile height
    Trim Ring (Bezel) Finish/Material Marine-grade aluminum bronze
    Input Voltage 10-31VDC
    Dimensions 5.83" (148mm) x 3.11" (79mm) x 1.50" (38mm)
    Warranty 2 Years
    Power Consumption 2 x 156W max (per fixture)
    Recessed Depth 7.24" (184mm) shaft length
    Lens Material Toughened BK7 Borosilicate
    Max Wattage 156W max (per fixture)
    Ingress Protection IP68
    Load Rating 40A
    Mounting Method Screws
    Luminous Flux 2 x 34,875 lms (15,500 fixture lms)
    Driver Integrated (interchangeable)
    Install Location Transom, Bottom, Hull-Side
    Electrical Protections Replaceable blade fuses, noise filtering
    Approximate Ship Weight (lbs) 3
