Marine Array LED Replacement Bulb - Warm White 10-30VDC

• Marine Array LED Replacement Bulb - Warm White, 10-30VDC, Bi-Pin Base

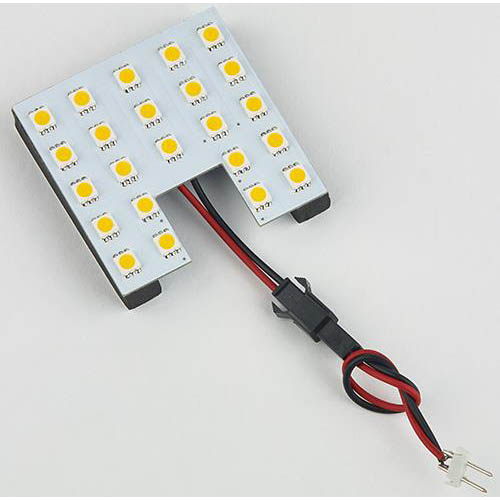

• Our "Array" LED replacement bulb is made specifically for the standard dome lights and square ceiling lights found in most boats and RV's. Our unique 23-LED matrix is designed to fit perfectly in the standard 5" and 6" dome lights like those made by ABI, AAA, West Marine, and Cabin, among others. The bulb features 23 triple-emitter SMD LEDs, along with a peel-and-stick foam mount backing that makes installation easy, even on concave or irregular surfaces. Our emitter board also has a notch cut-out for the socket, so the bulb fits perfectly centered. The light output on this bulb is impressive and it will outperform your existing incandescent, while drawing 8 times less amperage. Available in Warm White only.

Features:

• 23 x High Output SMD LEDs
• Flat array configuration ideal for dome lights
• Constant-current drive topology
• Over-voltage protection
• No radiated heat
• Thermally efficient design

Specifications:

• Dimensions: 57mm (2.5") x 57mm (2.5")
• Input Voltage: 10-30VDC
• Halogen Equivalency: 20W
• Power Consumption: 2.7W
• Driver: Integrated (constant-current)
• Bulb Socket Type: G4 Bi-Pin
• Output Color: Warm White
• Luminous Flux: 190 lms
• Correlated Color Temperature (CCT): 2900K
• Beam Angle: 120 dg
• Dimmer Compatibility: Intervolt Switchmode Dimmer
• Install Location: 5" and 6" dome lights
• Electrical Protections: Over-voltage
• Certifications & Compliance: CE
• Manufacturer: Imtra
• Warranty: 2 Years
