  • Description

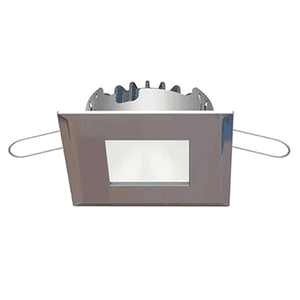

  • Marine Downlight - Carve PowerLED, 10-40VDC, Chrome Plated
  • Cool White, 4.7W, IP65
  • Featuring 2-wire power & dimming, Carve easily replaces existing legacy (halogen) spots negating the need to run extra wires. Integrated drive electronics eliminates the need for remote driver installation. Carefully designed optics result in fully blended illumination free of annoying artifacts or distracting hot spots. A robust thermal management system results in maximum life with minimal lumens depreciation over its expected working life (50,000+ hrs). Carve offers single or bi-color dimming when paired with Imtra's single or dual channel PWM dimmer module. Carve features a small diameter, ultra-flat, molded square bezel in mirror polished or matte chrome finish. Carve conveniently & firmly installs with self-adjusting stainless steel springs. Made in the USA and covered by a 5-year warranty!

Features:

  • Small diameter ultra-flat molded square/square bezel
  • Convenient 2-wire power & dimming (3-wires for Bi-Colors)
  • Bi-color models dimmable with single momentary switch
  • Integrated current controlled drive circuitry
  • Convenient spring mounting (no screws needed)

Specifications:

  • Trim Ring (Bezel) Finish/Material: Chrome Plated/PC
  • Housing Finish/Material: Black Electrophoretic Aluminum
  • Lens Material: Frosted glass
  • Trim Ring (Bezel) Dimensions: 3.14 inch x 3.14 inch (80 x 80mm) dia
  • Cut-out Dimensions: 2.65 inch (67mm)
  • Recessed Depth: 1.05 inch (27mm)
  • Integrated Switch: No
  • Input Voltage: 10-40VDC
  • Halogen Equivalency: 25W
  • Power Consumption: 4.7W
  • Driver: Integrated
  • Output Color: Cool White
  • Luminous Flux: 297 lms
  • Correlated Color Temperature (CCT): 6000K (White LED)
  • Color Rendering Index (CRI): 85
  • Lifetime Hours: 50,000 hrs
  • Dimmer Compatibility: ILIM80130, ILIM80140
  • Dimmer Control Interface: Momentary Push-Button
  • Dimming Range: 5-100%
  • Install Location: Ceilings (interior)
  • Ingress Protection: IP65 (applies only to frontal water exposure, i.e. Exposed surface)
  • Class: III
  • Electrical Protections: Reverse Polarity, Transient & Spike Protection
  • Certifications & Compliance: CE-EMC, ROHS
  • Manufacturer: Imtra
  • Warranty: 5 Years / 1 Year Finish

ATTENTION CALIFORNIA RESIDENTS

www.P65Warnings.ca.govWARNING: Cancer and Reproductive Harm

Click here for Dimensional Drawing
