  • Description

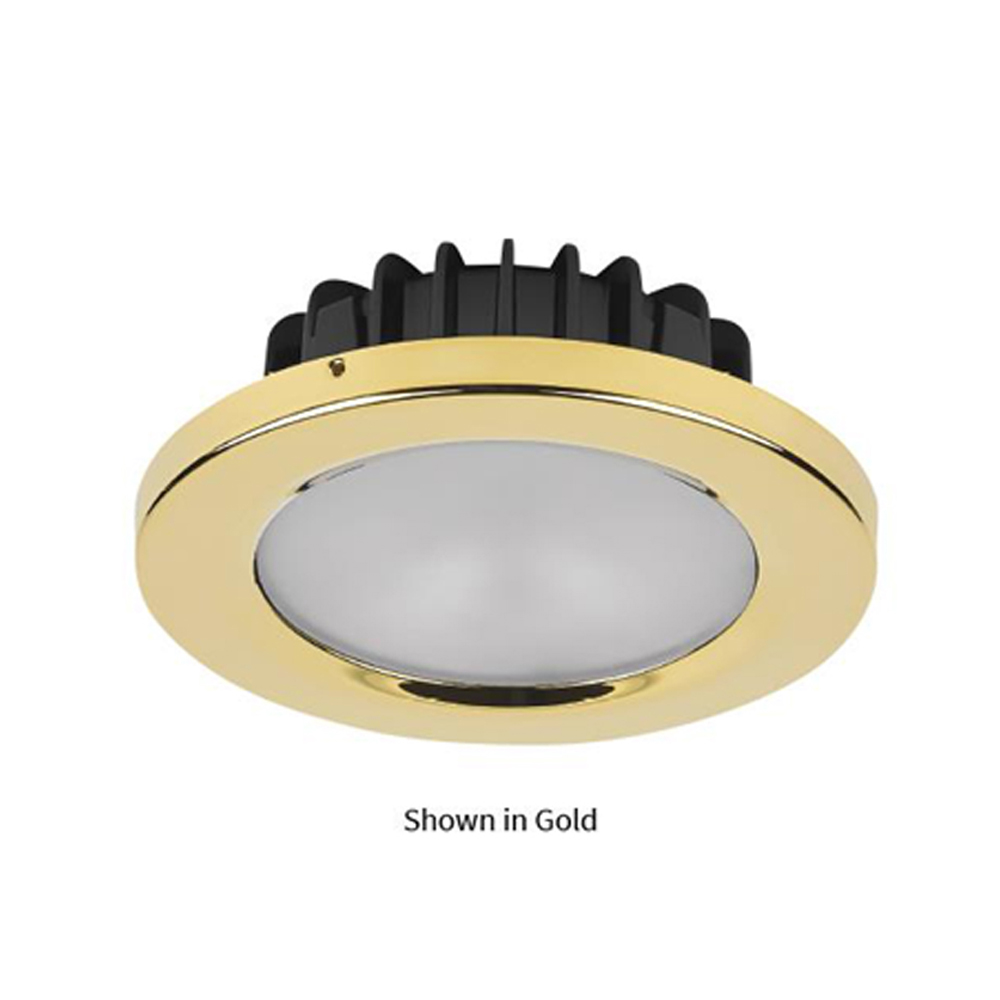

  • Marine Downlight - Pool Cool White PowerLED, 10-40VDC, Polished SS
  • Cool White, 4.7W, IP65
  • Featuring 2-wire power & dimming, Pool easily replaces existing legacy (halogen) spots negating the need to run extra wires. Integrated drive electronics eliminates the need for remote driver installation. Carefully designed optics result in fully blended illumination free of annoying artifacts or distracting hot spots. A robust thermal management system results in maximum life with minimal lumens depreciation over its expected working life (50,000+ hrs). Pool offers single or bi-color dimming when paired with Imtra's single or dual channel PWM dimmer module. Pool features a traditional raised-round bezel in several finishes. Pool is securely mounted with three screws and is ideal for hard ceilings (e.g. fiberglass or wood). It is a good choice for wet areas (e.g. hard tops, arches, walkway overhangs, shower stalls). Made in the USA and covered by a 5-year warranty!


  • Twist-on round stainless steel bezel design
  • Convenient 2-wire power & dimming (3-wires for Bi-Colors)
  • Bi-color dimming using single momentary switch
  • Integrated current controlled drive circuitry
  • Screw mount fastening for watertight installations


  • Trim Ring (Bezel) Finish/Material: Polished SS
  • Housing Finish/Material: Black Electrophoretic Aluminum
  • Lens Material: Frosted glass
  • Trim Ring (Bezel) Dimensions: 3.43 inch (87mm) dia
  • Cut-out Dimensions: 2.40 inch (61mm)
  • Recessed Depth: 1.05 inch (27mm)
  • Integrated Switch: No
  • Input Voltage: 10-40VDC
  • Halogen Equivalency: 25W
  • Power Consumption: 4.7W
  • Driver: Integrated
  • Output Color: Cool White
  • Luminous Flux: 297 lms
  • Correlated Color Temperature (CCT): 6000K (White LED)
  • Color Rendering Index (CRI): 85
  • Lifetime Hours: 50,000 hrs
  • Dimmer Compatibility: ILIM80130, ILIM80140
  • Dimmer Control Interface: Momentary Push-Button
  • Dimming Range: 5-100%
  • Install Location: Exterior (hard tops, overhangs, showers)
  • Ingress Protection: IP65 (applies only to frontal water exposure, i.e. Exposed surface)
  • Class: III
  • Electrical Protections: Reverse Polarity, Transient & Spike Protection
  • Certifications & Compliance: CE-EMC, ROHS
  • Manufacturer: Imtra
  • Warranty: 5 Years / 1 Year Finish


Click here for Dimensional Drawing
