  • Description

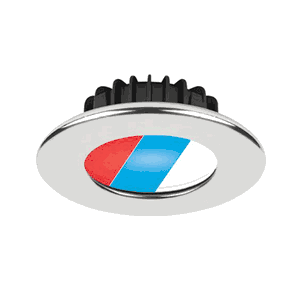

  • Marine Downlight - Ripple PowerLED Tri-Color, 10-40VDC, Polished SS
  • Red/Blue/Warm White, 5.0W, IP65
  • Featuring 2-wire power & dimming, Ripple easily replaces existing legacy (halogen) spots negating the need to run extra wires. Integrated drive electronics eliminates the need for remote driver installation. Carefully designed optics result in fully blended illumination free of annoying artifacts or distracting hot spots. A robust thermal management system results in maximum life with minimal lumens depreciation over its expected working life (50,000+ hrs). Ripple offers single or bi-color dimming when paired with Imtra's single or dual channel PWM dimmer module. Ripple features a round bezel with rounded radius edge. Ripple is securely mounted with three screws and is ideal for hard ceilings (e.g. fiberglass or wood). It is a good choice for wet areas (e.g. hard tops, arches, walkway overhangs, shower stalls). Made in the USA and covered by a 5-year warranty!

Features:

  • Select between Red, Blue and high-brightness white
  • Just 2 wires to control power and color selection
  • Control via (user-provided) single On/Off switch
  • 10-40VDC input voltage (12/24/32VDC systems)

Specifications:

  • Trim Ring (Bezel) Finish/Material: Polished SS
  • Housing Finish/Material: Black Electrophoretic Aluminum
  • Lens Material: Frosted glass
  • Trim Ring (Bezel) Dimensions: 3.80 inch (96mm) dia
  • Cut-out Dimensions: 2.40 inch (61mm)
  • Recessed Depth: 1.05 inch (27mm)
  • Integrated Switch: No
  • Input Voltage: 10-40VDC
  • Halogen Equivalency: 25W
  • Power Consumption: 5.0W
  • Driver: Integrated
  • Output Color: Red/Blue/Warm White
  • Luminous Flux: 183 lms
  • Correlated Color Temperature (CCT): 2800K (White LED)
  • Color Rendering Index (CRI): 85
  • Lifetime Hours: 50,000 hrs
  • Dimmer Compatibility: ILIM80130, ILIM80140
  • Dimmer Control Interface: Momentary Push-Button
  • Dimming Range: 5-100%
  • Install Location: Exterior (hard tops, overhangs, showers)
  • Ingress Protection: IP65 (applies only to frontal water exposure, i.e. Exposed surface)
  • Class: III
  • Electrical Protections: Reverse Polarity, Transient & Spike Protection
  • Certifications & Compliance: CE-EMC, ROHS
  • Manufacturer: Imtra
  • Warranty: 5 Years / 1 Year Finish

ATTENTION CALIFORNIA RESIDENTS

www.P65Warnings.ca.govWARNING: Cancer and Reproductive Harm

Click here for Dimensional Drawing
