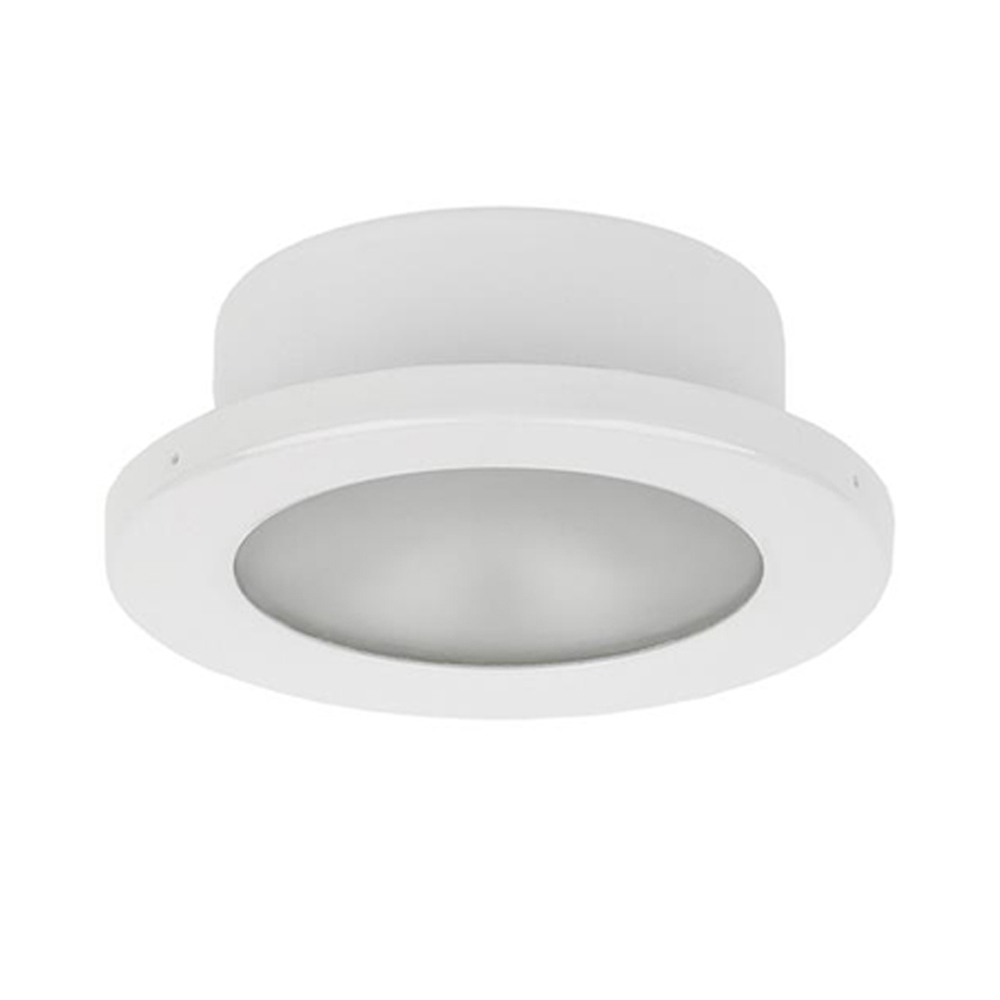

  • Marine Downlight - T105 PowerLED, 10-40VDC, White
  • Cool White/Red, 4.7W, IP65
  • Featuring 2-wire power & dimming, T105/T155/180 PowerLED fixtures easily replace existing legacy (halogen) spots negating the need to run extra wires. Integrated drive electronics eliminates the need for remote driver installation. Carefully designed optics result in fully blended illumination free of annoying artifacts or distracting hot spots. A robust thermal management system results in maximum life with minimal lumens depreciation over its expected working life (50,000+ hrs). T155/180 models offer single or bi-color dimming when paired with Imtra's single or dual channel PWM dimmer module. These fixtures feature a traditional raised-round bezel in several finishes. The T155/180 PowerLEDs securely mounted with three screws and are ideal for hard ceilings (e.g. fiberglass or wood). It is a good choice for wet areas (e.g. hard tops, arches, walkway overhangs, shower stalls). Made in the USA and covered by a 5 year warranty!


  • Twist-on round stainless steel bezel design
  • Convenient 2-wire power & dimming
  • Bi-color dimming models controlled with single momentary switch
  • Integrated current controlled drive circuitry
  • Double gaskets for splash-proof protection


  • Trim Ring (Bezel) Finish/Material: White
  • Housing Finish/Material: Aluminum
  • Lens Material: Frosted Glass
  • Trim Ring (Bezel) Dimensions: 4.13 inch (105mm)
  • Cut-out Dimensions: 3.03 inch (77mm)
  • Recessed Depth: 1.36 inch (35mm)
  • Integrated Switch: No
  • Voltage: 10-40VDC
  • Halogen Equivalency: 25W
  • Power Consumption: 4.7W
  • Driver: Integrated
  • Output Color: Cool White/Red
  • Luminous Flux: 189 lms
  • Correlated Color Temperature (CCT): 6000K
  • Color Rendering Index (CRI): 85
  • Lifetime Hours: 50,000 hrs
  • Dimmer Compatibility: ILIM80130, ILIM80140
  • Dimmer Control Interface: Momentary Push-Button
  • Dimming Range: 5-100%
  • Install Location: Exterior (hard tops, overhangs, showers)
  • Ingress Protection: IP65 (applies only to frontal water exposure, i.e. Exposed surface)
  • Class: III
  • Electrical Protections: Reverse Polarity, Transient & Spike Protection
  • Certifications & Compliance: CE-EMC, ROHS
  • Manufacturer: Imtra
  • Warranty: 5 Years / 1 Year Finish


Click here for Dimensional Drawing
