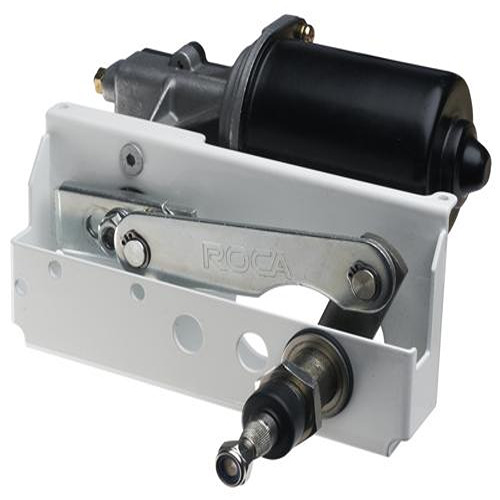

  • W25 Wiper Motor, 24V, 25Nm, 78mm/3.1 in., Bulkhead Mount
  • The Roca W25 wiper motor is made for the toughest conditions.
  • With a 25Nm torque and a strong drive system it powers up to 750mm / 35 inch arms and blades.
  • The sweep angle is easily adjusted from 45-110 degree for maximum visibility.
  • Two speeds: Slow 40 sweep/min and fast 60 sweep/min.
  • Dynamic parking, can easily be changed from Left to Right.

Features of the W25 Wiper System:

  • Single tapered drive shaft for secure motor/arm connection
  • External mount idler shaft for pantograph option
  • Stepless sweep angle adjustment
  • Sweep angle Adjustable from 45-110 degree
  • Insulated ground for installation on metal, GRP and wooden boats
  • CE approved; EMC protected

Benefits:

  • Easy installation and wiring
  • Choice of arm finish to fit surroundings perfectly
  • Wide range of arms and blades to fit most any window
  • Efficiently wipes big windows (maximum reach of 45 in.)
  • Quality system at an affordable price
  • 3 year warranty on motors & arms; 1 year for blades

Specifications:

  • Voltage: 24V
  • Power: 25Nm
  • Bulkhead Thickness (mm): 78mm
  • Bulkhead Thickness (in.): 3.1 in.
  • Sweep Angle Adjustment: 45-100 degrees Slot, Stepless adjustable
