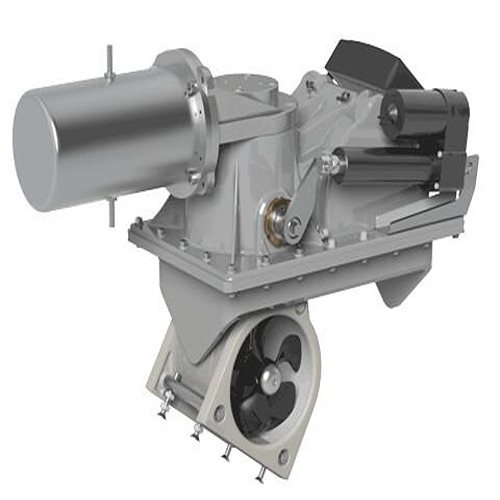

  • Srlp80 Retractable Thruster 90deg Motor 24v Proportional 80kg/176lb Thrust, No Frame
  • SRLP80 Retractable Thruster 90Deg Motor 24v, Proportional 80KG/176LB Thrust, No frame
    Side-Power developed the SRLP-series of speed control vertical retractable thrusters to meet the needs of boat owners who do not have the space to fit a tunnel through the boat's hull. Side-Power's range of proportional speed control DC thrusters allow you to select the power you need for precise boat movements in any weather and sea conditions. The unique "hold" feature allows you to keep the boat in position at dock or in locks. Can be used in either bow or stern thruster applications. The SRLP80/185T is one part of a complete Side-Power thruster system, including tunnel, controls, cables, fuses and battery switches. This model requires a Side-Power supplied frame for installation in composite hulls or a self-made frame for aluminum or steel hulls.
    Contact your local Side-Power representative for a system tailored to your needs.
    Features & Benefits

  • Plug and Play S-Link two-way communication control system
  • Horizontal motor mount for even more compact install
  • Fast deployment time
  • Hatch deploys straight out of hull for minimal cutout gaps, creating minimal drag when thruster is retracted
  • Pressure sensor on door automatically retracts thruster when boat speed is too high
  • Thruster lock out: thruster is disabled when fully or partially retracted
  • Performance

  • Propulsion technology know-how maximizing amount of thrust from the system
  • Lightweight composite propellers reduce work needed to get up to speed and stop rotation
  • Streamlined gear housing reducing turbulence in the tunnel and maximizing flow
  • Installation

  • Compact sized units to reduce the amount of interior volume needed
  • Simple Plug and Play wiring
  • Easily accessible battery terminals
  • Fast and safe propeller mounting with lock nut
  • GRP and composite bolt-on stern thruster tunnel kits pre-drilled for ease of installation
  • Easy access zinc anodes allowing quick and simple changing
  • Sealed gearleg so no messy oil fill-ups needed during installation
  • Safety and Reliability

  • Overheat thermal switch on electric motor stops operation, preventing damage to the electric motor
  • Mechanical protection of drive gear through flexible coupling between gearleg and motor
  • Self-locking high pressure contacts extend solenoid life and improve current conduction
  • Extra insulation to help prevent wear and heat damage of internal wiring
  • Non-conductive and self-extinguishing solenoid covers
  • Control panels have child-safe on system and timed shut down from last use
  • 2 Year limited warranty

  • Thrust @ 21VDC 176 lbs (80 kg)
    Typical Boat Size 35ft to 48ft (10m to 15m)
    Thrust @ 24VDC 212 lbs (96 kg)
    Propulsion System Twin
    Power @ 21VDC 7.6 hp (5.6 kw)
    Recommended Fuse Size 250 Amp (SMANL250)
    Minimum Battery Capacity 570 CCA SAE
    Approximate Ship Weight (lbs) 64
