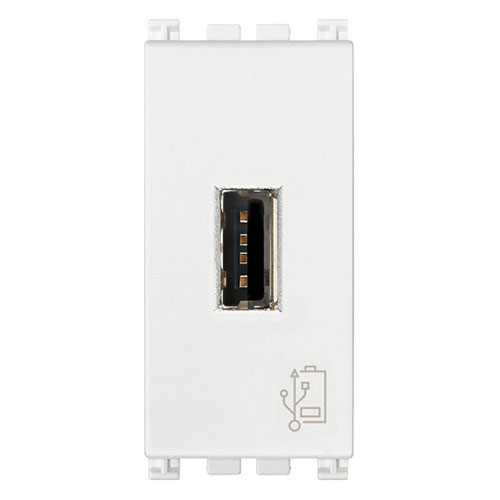

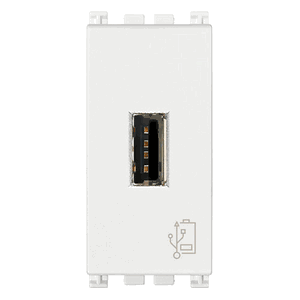

Power Supply: Usb-a, 1.5a 120/230vac, 5v Built-in, 1m, White, Arke - Vm19292.b

A flush mounting USB socket outlet for use with Vimar Arke series frames and cover plates. This single module 5V/1.5A charge port also fits in to the Idea Series USB Adapter frame which of course is compatible with Idea Series cover plates. Supply voltage 120-230VAC (50/60Hz).

Features:

  • Max output load: 1.5A
  • Ideal for mobile phones and other electronic devices
  • Compatible with Idea adapter frame model VM16723/VM16723.B

Specifications

  • Housing Finish/Material: White/Plastic
  • Certifications & Compliance: CE, ROHS, IMQ
  • Class: Class II
  • Dimensions: 1.9" (49mm) x 0.88" (22.3mm) x 1.84" (46.65mm)
  • Warranty: 3 Years
  • Power Consumption: 160mA at 120V and 110mA at 230V
  • Ingress Protection: IP20
  • Load Rating: 1.5A
  • Max Operating Temperature: +35°C (indoor use)
  • Standby Current: Less than 100mW
  • Efficiency: 75%
  • Ingress Protection Rating (IP): IP20-IP55
  • Approximate Ship Weight (lbs): 1
