  • Description

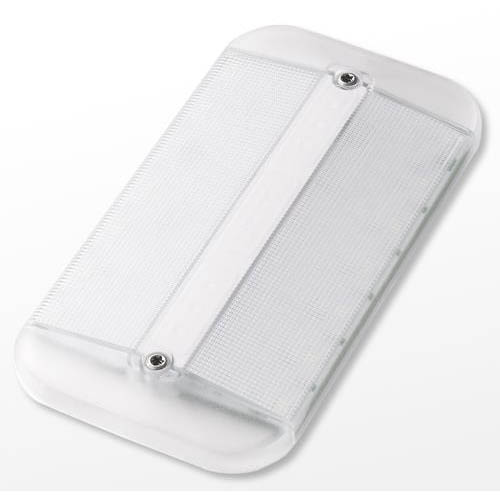

  • F-28 TouchLED Engine Room Light - Clear Warm White 10-30VDC
  • F-28 TouchLED, Clear, Warm White, 10-30VDC, Surface Mount, IP67
  • F-28 TouchLED is an extremely efficient, super high output, low-profile surface-mounted fixture designed for environments prone to extreme water exposure and high shock loads/vibration. Its integrated driver and rear or side-entry cabling provide ease and flexibility for mounting. This model is controlled by a convenient on-board "touch" activation feature. For models with standard remote switch activation, refer to the standard F-28 models.

Features:

  • Ultra slim surface-mount design
  • High lumen, non-glare light output
  • Convenient integrated "touch" switch control
  • Integrated driver for ease of installation
  • Rear or side-entry cabling
  • Designed for extremely wet environments
  • Single color and bi-color models available
  • Excellent choice for engine/utility rooms, holds

Specifications:

  • Trim Ring (Bezel) Finish/Material: Semi-transparent Polycarbonate
  • Housing Finish/Material: Polycarbonate
  • Lens Material: Polycarbonate
  • Trim Ring (Bezel) Dimensions: 6.70 x 3.54" (170 x 90mm)
  • Integrated Switch: Yes (Touch Sensor)
  • Input Voltage: 10-30VDC
  • Power Consumption: 7W
  • Driver: Integrated
  • Output Color: Warm White
  • Luminous Flux: 510 lms
  • Correlated Color Temperature (CCT): 3000K
  • Color Rendering Index (CRI): 80
  • Beam Angle: 80°
  • Lifetime Hours: 50000
  • Mounting Method: Screws
  • Ingress Protection: IP67
  • Class: Class III, F-Rated
  • Electrical Protections: Reverse Polarity, Transients, EMI
  • Certifications & Compliance: CE, ROHS, Igntion protection certified to USCG/ISO/SAE/NMMA standards
  • Manufacturer: Frensch
  • Warranty: 3 Years

ATTENTION CALIFORNIA RESIDENTS

www.P65Warnings.ca.govWARNING: Cancer and Reproductive Harm

Click here for Dimensional Drawing
