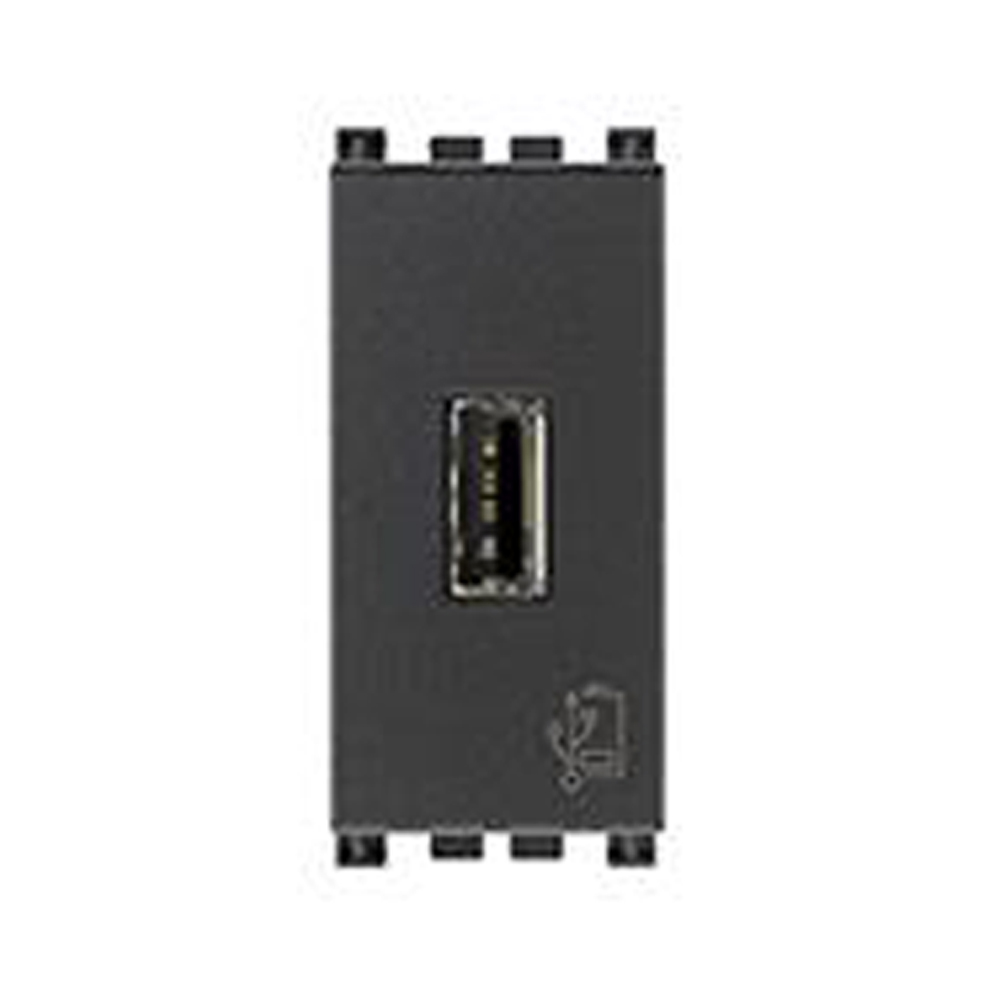

Vimar Arke USB Charging Outlet, 5V/1.5A Grey

Click image to enlarge

Vimar Arke USB Charging Outlet, 5V/1.5A Grey

Item No.: VM19292
Manufacturer: Imtra Marine Products

Regular price: $47.73

Sale price:$41.50

Other Variations:

Vimar Arke USB Charging Outlet, 5V/1.5A White | $41.50Vimar Arke USB Duplex Charging Outlet, 5V/2.1A White | $70.70Vimar Arke USB Duplex Charging Outlet, 5V/2.1A Grey | $70.70Arke: A+c-usb 5v, 2.4a, 1-module 120-240v, 50/60hz, Grey - Vm19292.ac | $59.00Arke: A+c-usb Supply Unit, 5v, 2.4a 1 Module, White - Vm19292.ac.b | $59.00Outlet: Usb-c, 120-240v 1m, White, Arke - Vm19292.c.b | $41.10Arke: C+c- Usb, 5v, 2.4a, 1-module Grey - Vm19292.cc | $63.30Outlet: Usb Type C+c 120v, White, 1m, Arke - Vm19292.cc.b | $63.30Arke: A+c- Usb 5v , 3a, 2-module 120-240v, 50/60hz, Grey - Vm19295.ac | $70.20Outlet: Usb, A+c Type 120-240vac, 2m, White, Arke - Vm19295.ac.b | $70.20

Qty.:

Need Help!!

Description

Vimar Arke USB Charging Outlet, 5V/1.5A Grey
1 Module, Grey
A flush mounting USB socket outlet for use with Vimar Arke series frames and cover plates. This single module 5V/1.5A charge port also fits in to the Idea Series USB Adapter frame which of course is compatible with Idea Series cover plates. Supply voltage 120-230VAC (50/60Hz).

Features:

Max output load: 1.5A
Ideal for mobile phones and other electronic devices
Compatible with Idea adapter frame model VM16723/VM16723.B

Specifications:

Housing Finish/Material: Grey/Plastic
Dimensions: 1.9 inch (49mm) x 0.88 inch (22.3mm) x 1.84 inch (46.65mm)
Input Voltage: 120/230VAC (50/60Hz)
Power Consumption: 160mA at 120V and 110mA at 230V
Stand by current: Less than 100mW
Load Rating: 1.5A
Efficiency: 0.75
Max Operating Temperature: +35°C (indoor use)
Ingress Protection: IP20
Class: II
Certifications & Compliance: CE, ROHS, IMQ
Manufacturer: Vimar
Warranty: 3 Years

Click here for Dimensional Drawing
