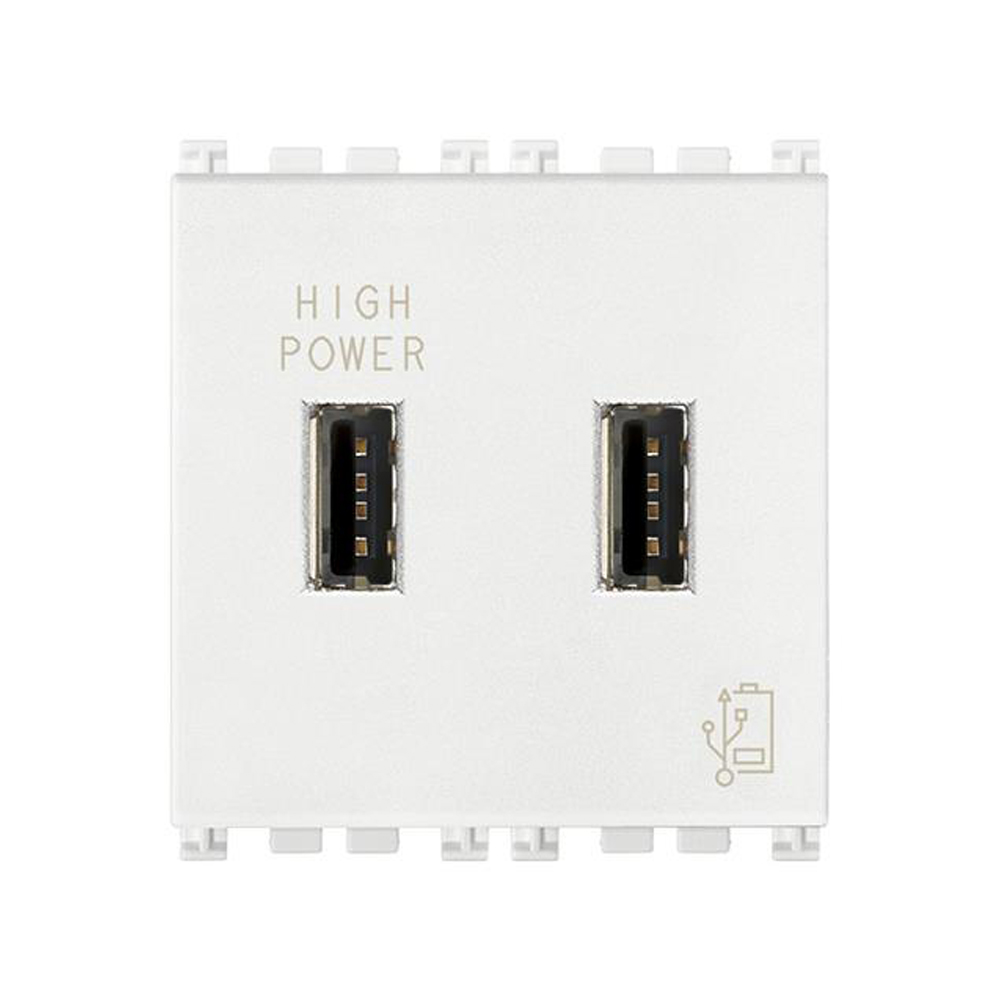

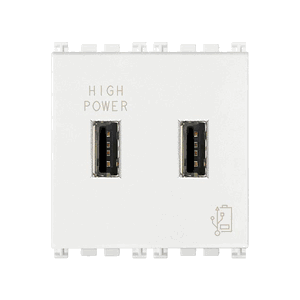

Vimar Arke USB Duplex Charging Outlet, 5V/2.1A White

• Vimar Arke USB Duplex Charging Outlet, 5V/2.1A White
• 2 Module, White
• A flush mounting USB duplex charging socket outlet for use with Vimar Arke series frames and cover plates. This double module 5 V/2.1 A power supply also fits in to the Idea Series USB Adapter frame which of course is compatible with Idea Series cover plates. Two USB ports supply a total of 2.1 A suitable for recharging a 2.1 A single device (e.g. tablet) or two 1 A devices simultaneously (e.g. smartphone and tablet), supply voltage 120-230 V~ 50/60 Hz, White - 2 modules

Features:

• Max output load: 2.1A (1X2100mA, 2x1050 mA, etc.)
• Ideal for mobile phones and other electronic devices
• Charges two devices simultaneously
• Compatible with Idea adapter frame model VM16723/VM16723.B

Specifications:

• Housing Finish/Material: White/Plastic
• Dimensions: 1.93 inch (49mm) x 1.89 inch (44.8mm) x 1.86 inch (47.2mm)
• Number of Modules: 2
• Input Voltage: 120/230VAC (50/60Hz)
• Power Consumption: 230 mA at 120 V and 150 mA at 230 V
• Stand by current: Less than 100mW
• Load Rating: 2.1 A (1x2100 mA, 2x1050 mA, etc.)
• Efficiency: 0.75
• Max Operating Temperature: +35°C (indoor use)
• Ingress Protection: IP20
• Class: II
• Certifications & Compliance: CE, ROHS, IMQ
• Manufacturer: Vimar

Click here for Dimensional Drawing
